Increase bifacial gain while also allowing space for green roof applications or roof obstructions, without sacrificing energy production. ELEVATED FLAT ROOF
RACKING SOLUTIONS

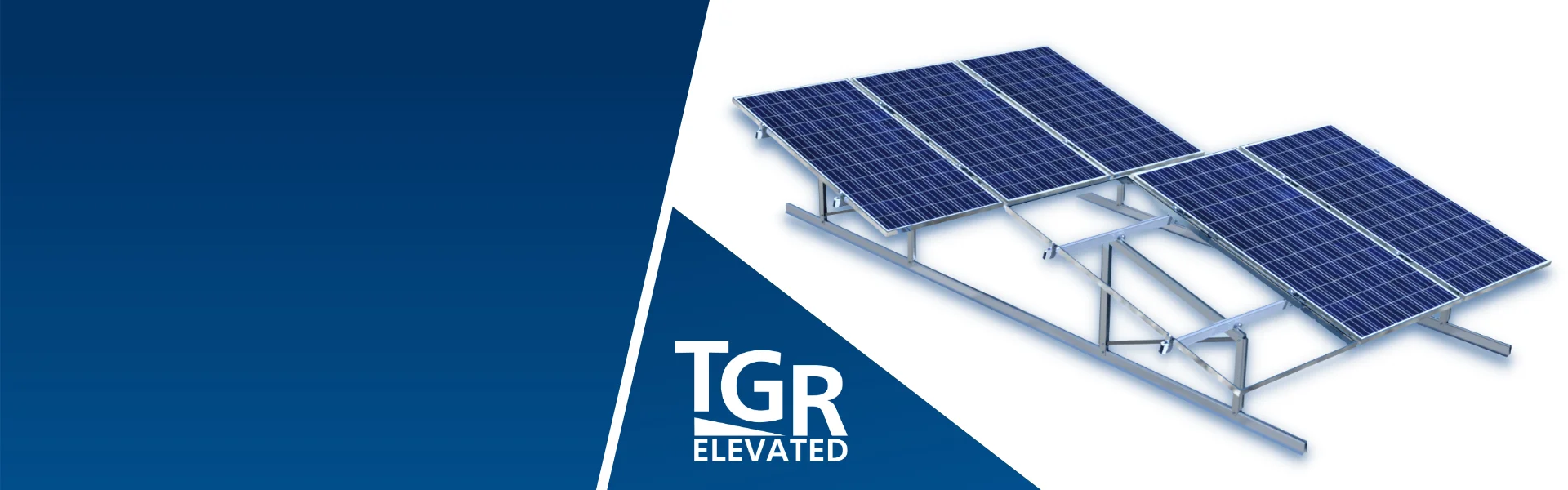

elevated racking

Flat Roof Mounting Solution

TGR-Elevated Racking was created with all roof challenges in mind. The elevation of the module off the roof deck provides increased bifacial production and can overcome many unique roof challenges, with minimal impact on cost or ballast requirements. The elevated racking system is perfect for green roof applications.

System Features & Benefits

Rail Based

  • Low ballast requirements, as low as 2.3psf
  • Clean and accessible wire management
  • Doesn’t rely on the module for load sharing increasing microcracks

Green Clamping Zones

  • Maintain module warranty
  • Allows for highest load rating for snow load or high wind regions

Flexible Design

  • Any tilt angle or row spacing to the customer’s specifications to maximize power generation.
  • Higher tilt options unique to the market
  • Any row spacing to maximize panel density

No Wind Screen Required

  • Installation efficiencies
  • Cooling effects on modules lead to increased performance
  • Reduce snow build up

Applications

Green Roofs

Bifacial

Custom

Technical Brief

Tilt Angle:
Panel Orientation:
Row Spacing:
Roof Type:
Material:

0°-35°
Portrait or landscape
Customizable
All flat roofs with <6°
Aluminum, stainless steel & galvanized steel

Building Height:
Wind Speed:
Wind Tunnel Testing:
Certifications:
Warranty:

ANY
ANY
RWDI
UL 2703, UL 3741
Standard 10 with 15-20 available upon request
